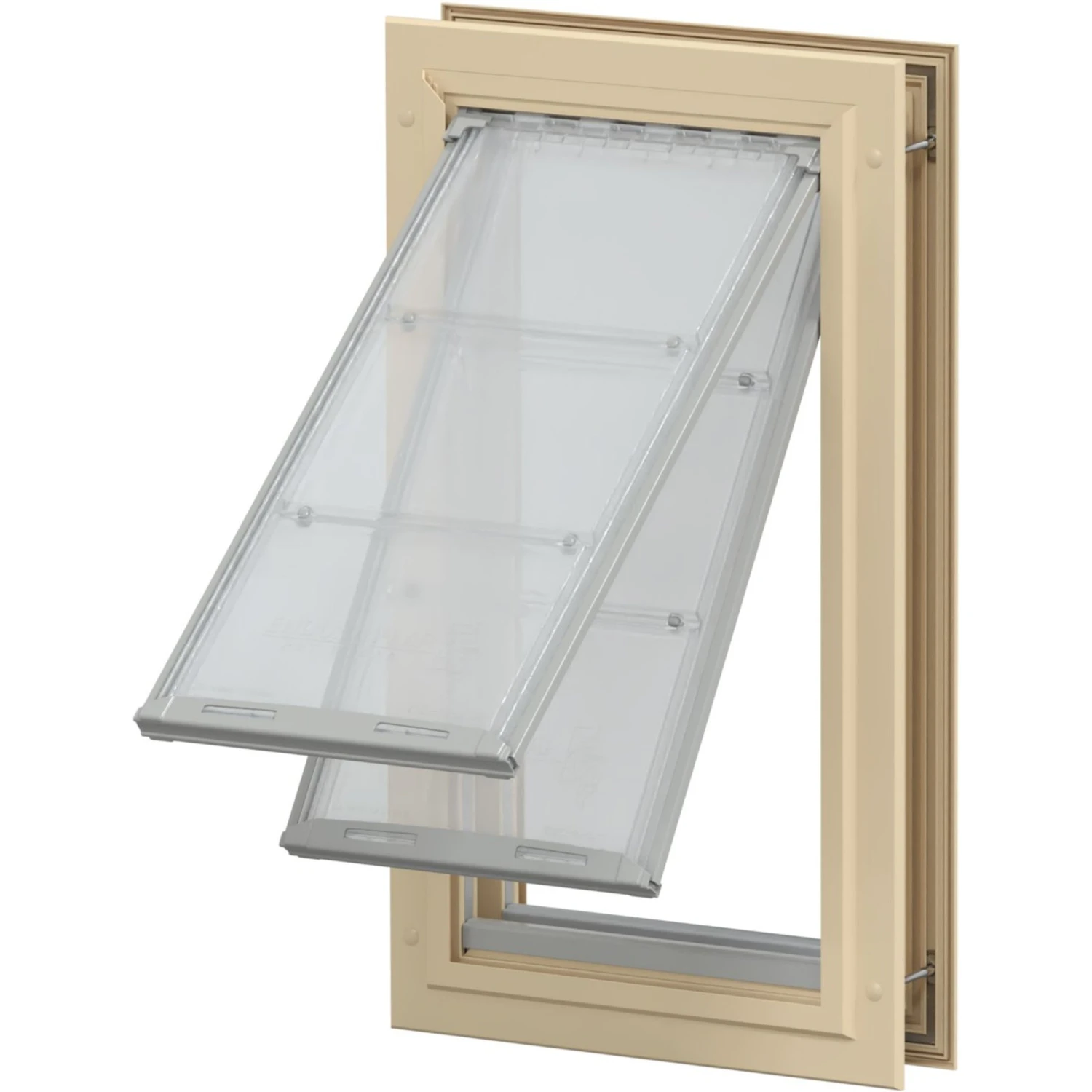

Endura Flap Double Flap Door Mount Dog & Cat Door

Original price was: $369.99.Current price is: $99.99.

SKU: Y2HLD 232264 Categories: Crates, Pens & Gates, Doors & Accessories

Effortless solutions, excellent customer care.
Efficient and effective customer service, online.
Free Shipping, No Compromise on Quality
Get the Best for Less

This award-winning and energy-efficient pet door is ideal for extremely hot or cold climates.
Features a magnetic seal designed to resist winds up to 50 miles per hour.
The double flaps are UV-resistant to prevent yellowing in the sun and won’t harden in cold temperatures.
Secure locking cover provides extra security against unwanted guests.
Designed, engineered and manufactured in the USA.

Your furry pal can get out without letting the elements in with the Endura Flap Double Flap Door Mount Dog and Cat Door. This pet door features superior energy-efficiency and double flaps—perfect for climates with extreme hot or cold weather. The magnetic seal provides extra insulation and can withstand winds up to 50 mile per hour. The UV-resistant flaps are designed to prevent yellowing and won’t harden in the cold of winter. And the secure locking cover offers extra security to prevent unwanted guests from entering your home. This premium pet door is also available in multiple sizes to accommodate dogs and cats both large and small!

Specifications

Item Number	232264
Dimensions	22 x 11.5 x 20 inches
Surface Compatibility	Wood, PVC, Drywall, Metal, Vinyl, Aluminum, Fiberglass
Flap Dimensions	8 x 14 inches
Placement	Door
Lifestage	Adult
Breed Size	Medium Breeds, Small Breeds, All Breeds
Features	Insulated, Locking
Material	Aluminum, Plastic, Metal
Assembly Required	Yes

What’s Included

(2) Flap Frame, Locking Cover, (4) 2 ¼ Inch Screws, (4) 2 ¾ inch screws, (8) Hole Plugs, (2) Weather Strips (already installed in frame), Warranty Card, Installation Template, Tube of Silicone & Installation Instruction Booklet.

Precautions

Endura Flaps are not recommended for use by kittens or very small dogs. Cats have been successful using the Small, however a few have found the Medium difficult to use. We would not recommend using the Large or Extra Large sizes for cats.

Wipe Clean.

Tape the provided template to the door. The top edge of the cut-out line should be 1-1/4 inch (or more) above the dog’s withers (shoulders) for the single flap door mount, and 2 inches for the double flap door mount. Be careful not to unduly reduce the strength of the door by cutting too close to the bottom of the door.
Mark the hole centers for the four holes and remove the template.
Drill the four 3/8 inch holes. Note Drill bit needs to be long enough to go through the interior and exterior of the door. It should be both level and straight when making the holes to ensure the two frames will align properly.
Draw lines to connect the outsides of the holes using a straight edge as shown on the template.
Cut along the line.
Install the weather-stripping into the groove on both frames with the start /end gap at the bottom.
If a single flap door mount, place the pet door trim frame on the outside of the door and the flap frame on the inside and skip to Step 14.
If a double flap door mount, assemble the four-piece tunnel by first bending the screw tabs down as shown in Figure 4 in the top and bottom tunnel pieces (the two identical shorter pieces). Note Only bend the tabs once, bending more than once may result in the tabs breaking off.
Figure 5: Remove the four flap assembly screws
Remove the screws in the four corners of the flap frame assembly as shown in Figure 5.
Place the top piece on, with the bent tabs down and align the top piece so the holes in the tabs lines up with the screw holes in the flap frame and screw in as shown in Figure 6. Repeat for the bottom piece.
Slide in the tunnel side pieces as shown in Figure 7.
Bend the tabs down with your thumb or a screwdriver handle.
Place the flap frame with the tunnel attached on the inside and the other flap frame outside.
Select the 2-1/4 inch set of screws for 1-3 /4 inch doors and the shorter set for 1-3/8 inch doors. Insert these into the pet door from the inside. For doors with a thickness of less than
1-3/8 inch, see special instructions. For doors between 1-3/4 inch and 2-1/4 inch with the double flap door mount, use the 2-3 /4 inch screws.
Start all four screws as shown in Figure 8, but do not tighten.
Before tightening down the screws, check that the pet door is level and adjust as needed.
Tighten the screws until the weather-stripping compresses and the pet door touches the door. Do not over tighten.
Hammer the hole covers into the frame using the wooden end of a hammer (or similar non metal tool).
For double flap door mounts, apply silicone along the inside of the tunnel where it mates with the flap frames to seal your pet door from the elements. Failure to seal your pet door can lead to severe water damage.
